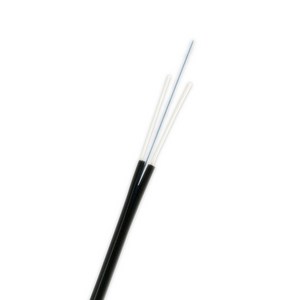

FTTH Drop Cable GJXH

5 0 Reviews
Fiber to the home (FTTH).
Price: $ 25  -  31
Fiber Count:
Quantity:
  • GJXH
  • Headway

FTTH GJXH

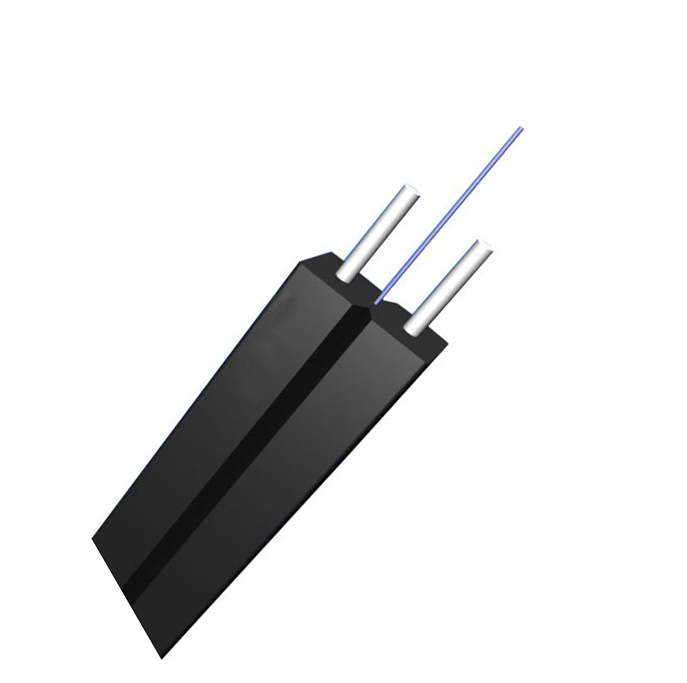

Cable Design

GJXH(改)


Technical Data

Number of cores

1/2/4

Fiber type

G.657A1

Strength Member

Material

Steel wire

Diameter±0.05mm

0.4

Number

2

Outer Sheath

Material

LSZH

Colour

Black or white

Cable size±0.1mm

mm

2.0×3.0

Cable weight±1kg/km

kg/km

10

Max attenuation

1310nm

dB/km

0.35

1550nm

0.21

Tensile strength

Long term

N

100

Short term

200

Crush strength

Long term

N/100mm

1000

Short term

2200

Bending radius

static

mm

20 cable’s diameter

dynamic

40 cable’s diameter

Working temperature

-40~+60
