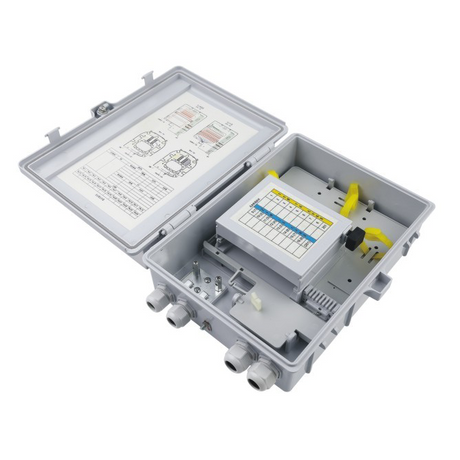

Fiber Distribution Box 24 Core

5 0 Reviews
Used as a termination point in FTTx communication network system.
The fiber splicing, splitting, distribution can be done in this box.
Price: $ 8.8 / PCS
Quantity:
  • HW-FDB-24B
  • Headway

Fiber Optic Distribution Box 24 Core


Features:

1、 Total enclosed structure.

2、 Material: ABS,wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP55。

3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4、 Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.

5、 Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

6、 Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

7Environmental requirement

Working temperature:-40℃~+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa~106Kpa

8Thunder-proof technical datasheet

The grounding device is isolated with the cabinet, isolation resistance is less than 2MΩ/500V(DC);IR≥2MΩ/500V

The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture,no flashover;U≥3000V


Specification

Model

Description

Size

Max Capacity

Cable entry

A*B*C(mm)

HW-FDB-24B

Distribution Box

320x230x90

24

4 Ports





Place of Origin:China
Brand Name:Headway
Packaging Details:Normal export Carton Packing
Delivery Time:According the quantity
Payment Terms:T/T L/C Western Union
Supply Ability:100000
MOQ:100
Material:plastic PC+ABS
Size(MM):300*420*115(W*H*D)
Weight(KG):1.35


Customer Reviews

 5 / 5

 0  Review(s)

No eligible records display
