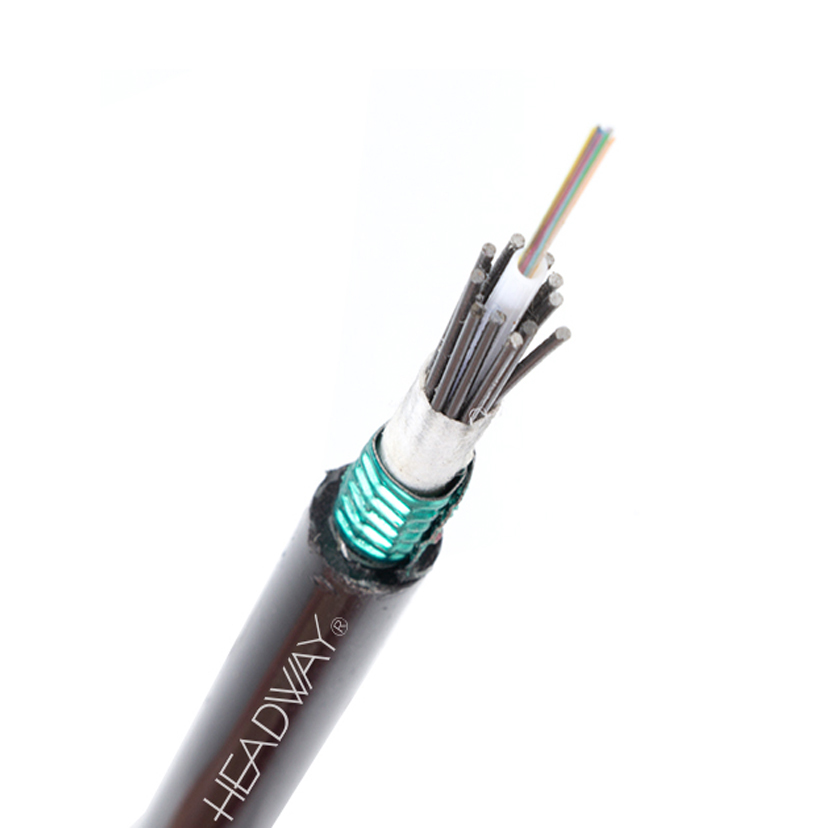

Outdoor Communication Cable(GYXTS)
Cable Design
Technical data
No. of cable | 2～8 | 10～12 | |
Fiber Model | G.652D | ||
Strength Member | Material | Steel Wire | |
Diameter（±0.05）mm | 0.6 | 0.7 | |
NO. | 12 | 12 | |
Loose Tube | Material | PBT | |
Diameter（±0.06）mm | 1.8 | 2.0 | |
Thickness（±0.03）mm | 0.28 | 0.30 | |
The Max.Core NO./Tube | 6 | 12 | |
Water Blocking layer（Material） | Flooding Compound | ||
Moisture Barrier | Material | Steel Tape | |
Thickness（±0.05）mm | 0.2 | ||
Outer Sheath | Material | MDPE | |
Thickness（±0.2）mm | 1.6 | ||
Cable Diameter（±0.2）mm | 7.2 | 7.6 | |
Cable Weight（±10）kg | 73 | 88 | |
Min. bending radius | Without Tension | 10×Cable-φ | |
Under Maximum Tension | 20×Cable-φ | ||
Temperature range （℃） | Installation | -20~+60 | |
Transport&Storage | -40~+70 | ||
Operation | -40~+70 | ||
