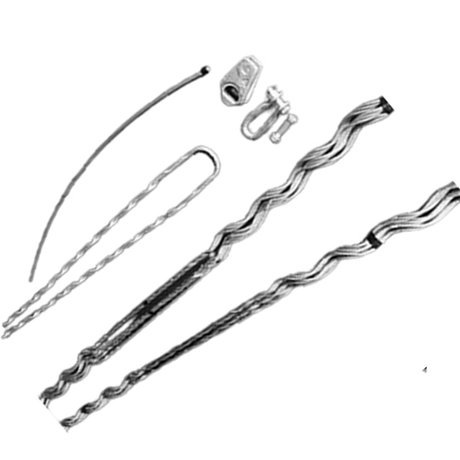

Galvanized Twisted Fence Wire for ADSS
ADSS tension set is suitable for connection of optical erection on overhead ADSS transmission line to pole & tower in which the clamp protects & auxiliarily absorbing vibration available on ADSS optical cables. The special design for dead-end component ensures the tension set itself will not generate any of concentrated stress harmful to ADSS optical cable, effectively guaranteeing the normal usage for optical cable.
| Type | Applicable Diameter of Cable(mm) | Length of Dead End Component(mm) | Weight(kg) | ||
| HW0950 | 9.0-9.5 | 800 | 0.38 | ||
| HW1050 | 9.6-10.5 | 850 | 0.49 | ||
| HW1160 | 10.6-11.6 | 900 | 0.52 | ||
| HW1280 | 11.7-12.8 | 960 | 0.65 | ||
| HW1410 | 12.9-14.1 | 1080 | 0.82 | ||
| HW1560 | 14.2-15.6 | 1160 | 1.22 | ||
Galvanized Twisted Fence Wire for ADSS
ADSS tension set is suitable for connection of optical erection on overhead ADSS transmission line to pole & tower in which the clamp protects & auxiliarily absorbing vibration available on ADSS optical cables. The special design for dead-end component ensures the tension set itself will not generate any of concentrated stress harmful to ADSS optical cable, effectively guaranteeing the normal usage for optical cable.
| Type | Applicable Diameter of Cable(mm) | Length of Dead End Component(mm) | Weight(kg) | ||
| HW0950 | 9.0-9.5 | 800 | 0.38 | ||
| HW1050 | 9.6-10.5 | 850 | 0.49 | ||
| HW1160 | 10.6-11.6 | 900 | 0.52 | ||
| HW1280 | 11.7-12.8 | 960 | 0.65 | ||
| HW1410 | 12.9-14.1 | 1080 | 0.82 | ||
| HW1560 | 14.2-15.6 | 1160 | 1.22 | ||
