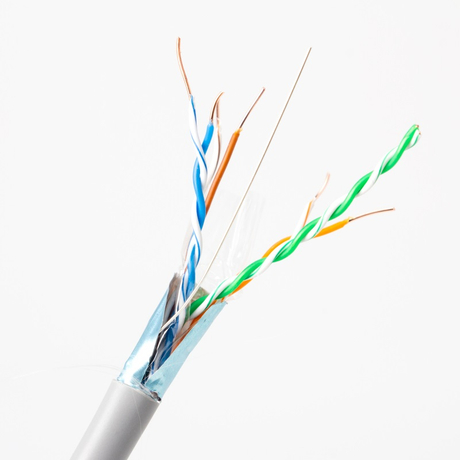

LAN Cable CAT5e F/UTP

5 0 Reviews

Price: $ 60.5 / 305m/Box
Quantity:

Annealed Solid Bare Copper

HDPE  insulation

PVC Jacket



Reference Standard  TIA/EIA-568-C.2, ISO/IEC11801,

Working Temperature Range-20℃~70℃

Min. Installation Temperature0℃


Construction


 Electrical characteristic (20)

Conductor

1.Conductor DC Resistance

≤95Ω/km

Material

Annealed  Bare Copper

2.Resistance Unbalance

Within a Pair: ≤2%

Nominal diameter

0.51±0.005 mm

Between Pairs: ≤4%

Insulation

3 Insulation  Resistance

≥5000MΩ.km

Material

HDPE

4.Mutual capacitance(1kHz)

≤56nF/km

Nom/Min Thickness

0.24/0.21mm

Others see table 1 and table 2

Insulation Diameter

1.0±0.05mm

Physical Properties

Twisted pair

1. Insulation tensile strength

≥ 16.5MPa

Pair No.

Insulation Color Codes

2. Insulation elongation

≥ 300%

1.

White/Blue(Strip)  / Blue

Aging condition

100±2,48h

2.

White/Orange(Strip) / Orange

3. Aged Insulation tensile strength

≥75% of Unaged

3.

White/Green(Strip) / Green

4. Aged Insulation elongation

≥75% of Unaged

4.

White/Brown(Strip) / Brown

5. Jacket tensile strength

≥13.5MPa

Pair Twist Lay Length

≤ 25mm

6. Jacket elongation

≥ 150%

Cabling

Aging condition

100±2,168h

Stranding construction

1*4

7. Aged Jacket tensile strength

≥12.5MPa

PET Tape

20*0.02mm

8. Aged Jacket elongation

≥ 125%

Drain Wire

0.4

9.Environment Requirements

standard of RoHS

AL/PET Tape Thickness

0.06mm


Jacket

Material

PVC

Color

Gray or Blue

Thickness

0.52±0.05mm

Jacket Diameter

6.2±0.3

Rip Cord

630D
