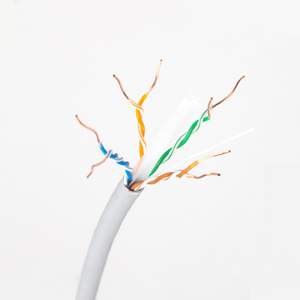

LAN Cable CAT6 F/UTP

5 0 Reviews

Price: $ 83 / 305m/Box
Quantity:

Annealed Solid Bare Copper

HDPE  insulation

PVC Jacket



Reference Standard  TIA/EIA-568-C.2, ISO/IEC11801,

Working Temperature Range-20℃~70℃

Min. Installation Temperature0℃


Construction


Jacket

Conductor

Material

PVC

Material

Annealed  Bare Copper

Color

Gray or Blue

Nominal diameter

0.58±0.005 mm

Normal Thickness/Thinnest Thickness

 0.52mm/0.48mm

Insulation

Jacket Diameter

7.6mm±0.40mm

Material

PE

Rip Cord

630D

Concentric Ratio

≥90%

 Electrical characteristic(20℃)

Insulation Diameter

1.1±0.1mm

 1.Conductor DC Resistance

≤73.2Ω/km

Twisted pair

 2.Resistance Unbalance

≤2

Pair No.

Insulation Color Codes

 3. Dielectric Strength Between Wires

DC 1000V 1min

1.

White/Blue(Strip)  / Blue

 4.Insulation DC Resistance Between wires

≥5000MΩ·km

2.

White/Orange(Strip) / Orange

 5. Capacitance Unbalance (1kHz)

   ≤1600pF/km

3.

White/Green(Strip) / Green

 Safety characteristic

4.

White/Brown(Strip) / Brown

Environment Requirements

standard of RoHS

Pair Twist Lay Length

≤ 25mm


Cabling

Stranding construction

1*4

Filler

PE

Thickness

≥0.02mm

Electric Side

AL Face Outside

Al Foil /Al Thickness

≥0.06mm/≥0.03mm

Drain Wire Material

Tinned Copper

Diameter

0.40mm±0.01mm
