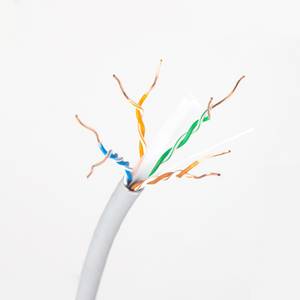

LAN Cable CAT6a F/UTP

5 0 Reviews
Price: $ 101.5 / 305m/Box
Quantity:

Annealed Solid Bare Copper

HDPE  insulation

PVC Jacket



Reference Standard  TIA/EIA-568-C.2, ISO/IEC11801,

Working Temperature Range-20℃~70℃

Min. Installation Temperature0℃


Construction


Jacket

Conductor

Material

PVC

Material

Annealed  Bare Copper


Color

Gray or Blue

Nominal diameter

0.57±0.01mm

Thickness

0.55±0.1mm

Insulation


Jacket Diameter

7.5±0.4mm

Material

PE


Rip Cord

630D

Nom/Min Thickness

0.26/0.24mm

Electrical characteristic (20)

Insulation Diameter

1.12±0.05mm

1.Conductor DC Resistance

≤95Ω/km

Twisted pair


2.Resistance Unbalance

Within a Pair: ≤2%

Pair No.

Insulation Color Codes


Between Pairs: ≤4%

1.

White/Blue(Strip)  / Blue

3 Insulation  Resistance

≥5000MΩ.km

2.

White/Orange(Strip) / Orange

4.Mutual capacitance(1kHz)

≤56nF/km

3.

White/Green(Strip) / Green

Others see table 1 and table 2

4.

White/Brown(Strip) / Brown

Physical Properties

Pair Twist Lay Length

≤ 25mm

1. Insulation tensile strength

≥ 16.5MPa

Cabling


2. Insulation elongation

≥ 300%

Stranding construction

1*4


Aging condition

100±2,48h

Tape A  Material

PET tape

3. Aged Insulation tensile strength

≥75% of Unaged

Shielding Tape B  Material

Al/PET Shield

4. Aged Insulation elongation

≥75% of Unaged

Electric Side

Toward inside

5. Jacket tensile strength

≥13.5MPa

Al Foil Thickness

≥0.06mm

6. Jacket elongation

≥ 150%

Drain Wire Diameter(mm)

0.40±0.01

Aging condition

100±2,168h



7. Aged Jacket tensile strength

≥12.5MPa


8. Aged Jacket elongation

≥ 125%

9.Environment Requirements

standard of RoHS
