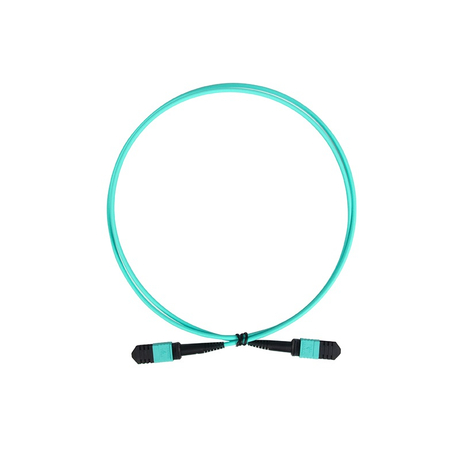

MPO/MTP OM3 Patch Cord

5 0 Reviews

Price: $ 14.5  -  20.7
Connector-A:
Connector-B:
Lenght:
Quantity:

Description

MTP/MPO armored patchcords can protect the biting from mice.

Facilitate rapid deployment of high density armored mini cabe in data centres and other high fibre environments.

Reduce network installation or reconfiguration time and cost.

MTP/MPO armored patchcords are built with highest quality components Standard MTP/MPO as well low loss

Elite versions are offered featuring low insertion loss for demanding high speed networks with critical power budget requirements.



Application

Data center infrastructure
Storage area network
Optical switch and router
Emerging 40Gbps and 100Gbps protocols compatible



Specification



Fiber Type

SM

SM

 ( Low-Loss)

MM

MM

 (Low-Loss)

Insertion Typical(dB)

0.35

0.10

0.35

0.10

Insertion Maximum(dB)

0.7

0.35

0.60

0.35

Return Loss(dB)

MM35 UPC≥50 APC≥55

Male/Female

Male:with PinsFemale:without Pins

Repeatability(dB)

≤0.2 / 500 Times

Operating Temperature(℃)

-40~+85
