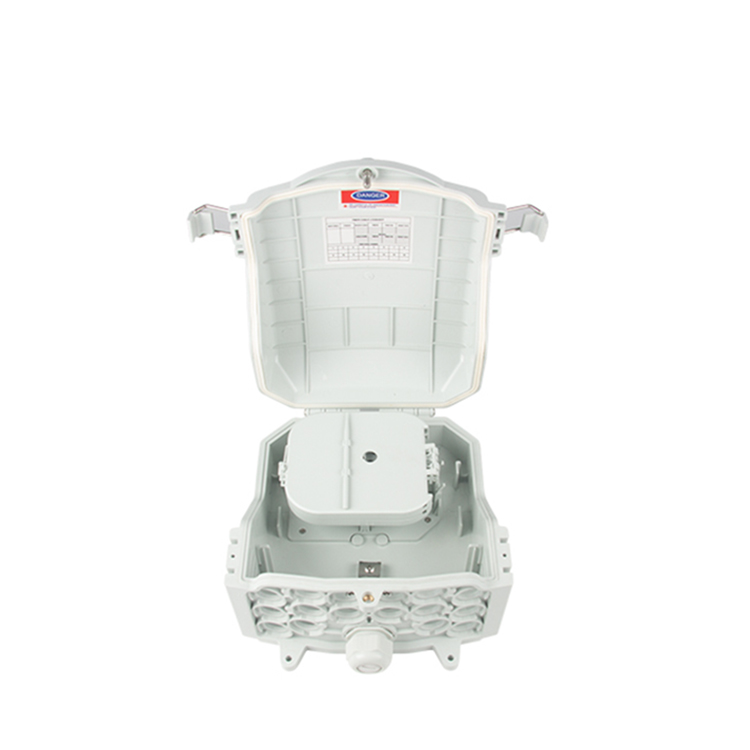

HW-FDB-16
Headway
Features:
1. Total enclosed structure.
2. Material: PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
7. Environmental requirement
Working temperature: -40℃～+85℃
Relative humidity: ≤85% (+30℃)
8. Atmospheric pressure: 70KPa~106Kpa
9. Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2´104MΩ/500V (DC); IR≥2´104MΩ/500V.
The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V
Specification:
Model | Description | Size | Max Capacity | Cable entry |
A*B*C(mm) | ||||
HW-FDB-16 | Splitter & Splicing Box | 260*213*116 | 16 | 1 port |
