GJFJH
Headway

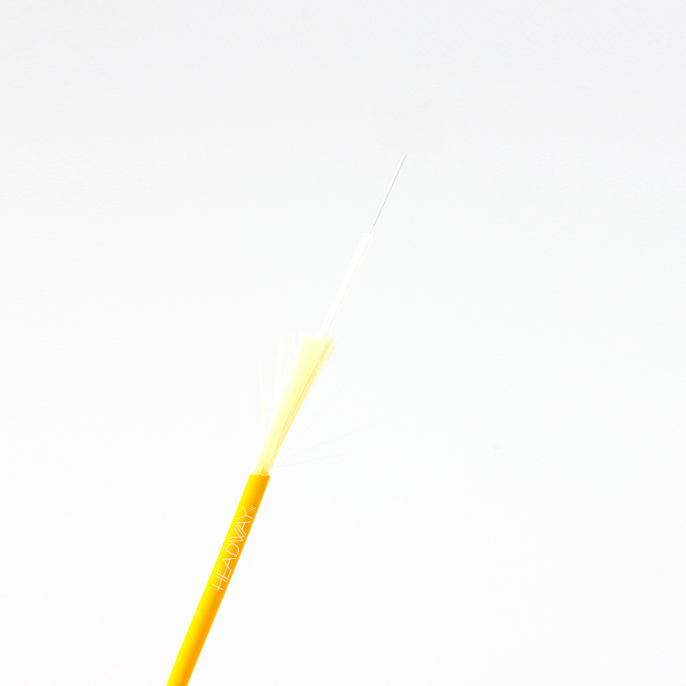

Indoor Communication Cable(GJFJH)
Cable Design
Technical data
No. of cable | 1 | ||
Fiber Model | G.652D | ||
Tight lines | Material | PVC | |
Thickness（±0.03）mm | 0.30 | ||
Diameter（±0.06）mm | 0.9 | ||
Colour | White | ||
Strength Member | Material | Aramid Yarn | |
Outer Sheath | Material | LSZH | |
Thickness（±0.05）mm | 0.45 | ||
Colour | Yellow （According to customer needs） | ||
Cable Diameter（±0.2）mm | 3.0 | ||
Cable Weight（±2）kg/km | 7 | ||
Attenuation | 1310nm | dB/km | ≤0.35 |
1550nm | ≤0.21 | ||
Allowable Tensile Strength | Short Term | N | 150 |
Long Term | 80 | ||
Allowable Crush Resistance | Short Term | N/100mm | 500 |
Long Term | 100 | ||
Min. bending radius | Without Tension | 10×Cable-φ | |
Under Maximum Tension | 20×Cable-φ | ||
Temperature range （℃） | Installation | -20~+60 | |
Transport&Storage | -40~+70 | ||
Operation | -40~+70 | ||
