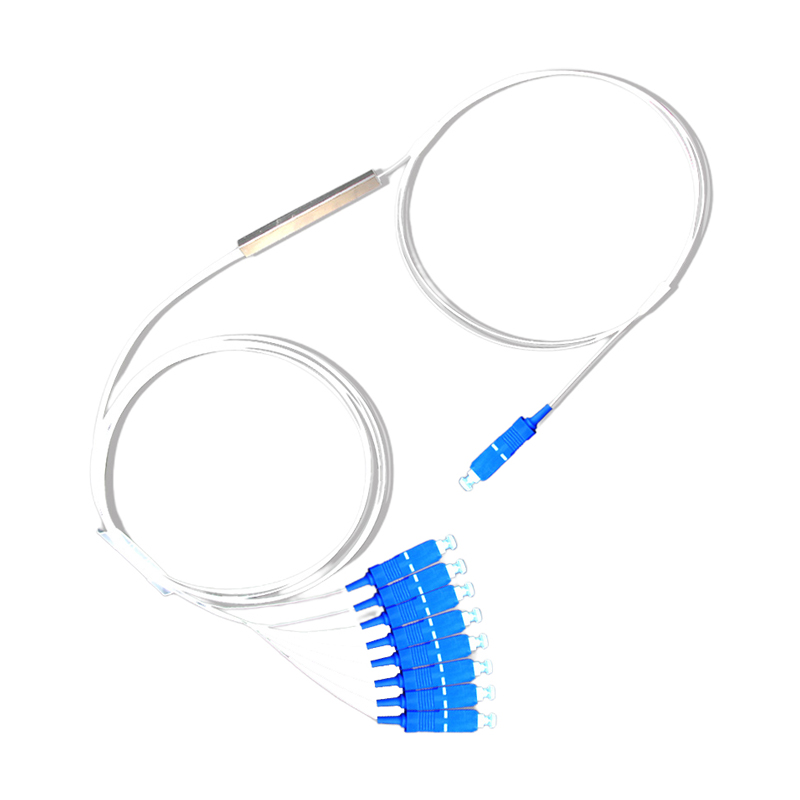

Mini Case Splitter
Headway
Product Feature
*Excellent Mechanical,Small Size
*High Reliability
*Low insertion Loss and low Polarization Dependent loss
*High channel counts
*Excellent Environmental Stability and Widely Used
Application
*FTTx Deployments(GPON/BPON/EPON)
*Cable television (CATV)
*Local area networks (LAN)
*Test equipment
*Passive optical networks(PON）
Specification
1xN PLC Splitter Specification | |||||||
Operating Wavelength(nm) | 1260~1650 | ||||||
Fiber Type | G657A1 or as customers' order | ||||||
Port Configuration | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 |
Insertion Loss (dB) | 3.8 | 7.1 | 10.5 | 13.5 | 16.5 | 20.5 | 23.8 |
Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2 | 2.5 |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 |
Wavelength Dependent Loss(dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | 0.5 |
Temperature Dependent Loss (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
Return Loss (dB) | 55/50 | ||||||
Operating Temperature | -40~+85 | ||||||
Directivity (dB) | ≥ 55 | ||||||
Storage Temperature | -40~+85 | ||||||
2xN PLC Splitter Specification | |||||||
Operating Wavelength(nm) | 1260~1650 | ||||||
Fiber Type | G657A1 or as customers' order | ||||||
Port Configuration | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 |
Insertion Loss (dB) | 4.0 | 7.6 | 11 | 14.4 | 17.5 | 21 | 24.5 |
Loss Uniformity (dB) | 0.6 | 1 | 1.2 | 1.5 | 1.8 | 2.2 | 2.5 |
Polarization Dependent Loss(dB) | 0.2 | 0.2 | 0.3 | 0.3 | 0.35 | 0.4 | 0.4 |
Wavelength Dependent Loss(dB) | 0.3 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Temperature Dependent Loss (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | 0.5 |
Return Loss dB) | 55/50 | ||||||
Operating Temperature | -40~+85 | ||||||
Directivity (dB) | ≥ 55 | ||||||
Storage Temperature | -40~+85 | ||||||
