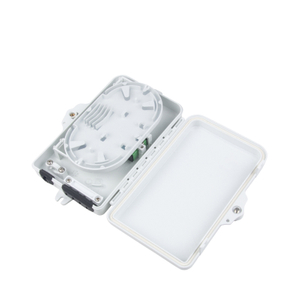

HW-FDB-24
Headway
Features：
1、 Total enclosed structure.
2、 Material: ABS，wet-proof、water-proof、dust-proof、anti-aging, protection level up to IP55。
3、 Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4、 Cable，pigtails，patch cords are running through own path without disturbing each other, cassette type SC/LC/PLC adaptor installation, easy maintenance.
5、 Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6、 Cabinet can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.
7、Environmental requirement
Working temperature：-40℃～+85℃
Relative humidity：≤85%（+30℃）
Atmospheric pressure：70KPa～106Kpa
8、Thunder-proof technical datasheet
The grounding device is isolated with the cabinet, isolation resistance is less than 2 MΩ/500V（DC）；IR≥2 MΩ/500V
The withstand voltage between grounding device and cabinet is no less than 3000V（DC）/min, no puncture，no flashover；U≥3000V
Specification：
Model | Description | Size | Max Capacity | Cable entry |
A*B*C(mm) | ||||
HW-FDB-24 | Distribution Box | 330x225x90 | 24 | 2 Ports |
