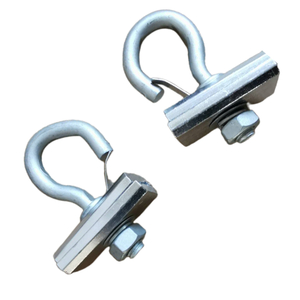

Aluminium alloy pole bracket for ADSS cable

Availability:
Quantity:



The UPB bracket is manufactured from aluminum alloy with correspondingly high mechanical strength. Its unique patented design has
been developed to propose a universal fitting covering all installation situations on wooden, metal or concrete poles.


With steel bands
The UPB bracket can be installed on any type of pole – drilled or undrilled – with two 20x0.7 mm stainless steel bands plus two
buckles . Usually allow two bands of one meter each per bracket.

With bolts
If the top of the pole is drilled (wooden poles, occasionally concrete poles) the UPB bracket can also be secured with a 14 or 16
mm bolt. The bolt length should be at least equal to the pole diameter + 50 mm (bracket thickness).
