GYXTW
Headway

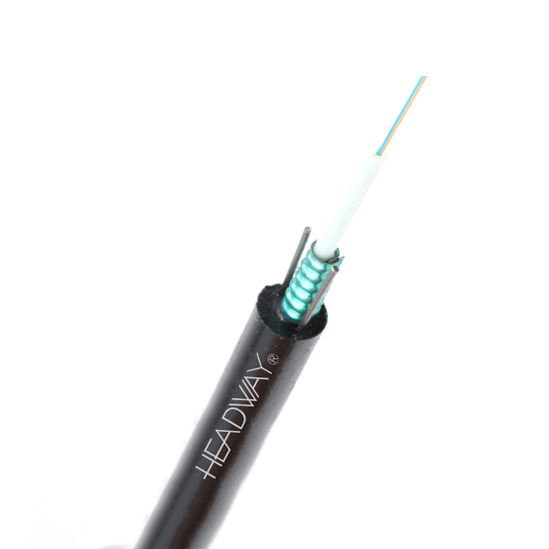

Outdoor Communication Cable(GYXTW)
Cable Cross Section
Technical data
No. of cable | 2～8 | 10～12 | 14～24 | ||
Fiber Model | G652D | ||||
Loose Tube | Material | PBT | |||
Diameter（±0.06）mm | 1.8 | 2.0 | 2.8 | ||
Thickness（±0.03）mm | 0.28 | 0.3 | 0.4 | ||
Water Blocking layer（Material） | Water blocking tape | ||||
Armoring | Material | Steel-plastic composite tape | |||
Thickness（+0.03）mm | 0.20 | ||||
Strength Member | Material | Phosphating steel wire | |||
Size(±0.05)mm | 0.8 | ||||
No. | 2 | ||||
Outer Sheath | Material | MDPE/HDPE | |||
Thickness（±0.2）mm | 2.0 | ||||
Cable Diameter（±0.2）mm | 7.7 | 7.9 | 8.5 | ||
Cable Weight（±5）kg | 42 | 44 | 50 | ||
Attenuation Index | 1310nm | dB/km | ≤0.36 | ||
1550nm | ≤0.21 | ||||
Min. bending radius | Without Tension | 10.0×Cable-φ | |||
Under Maximum Tension | 20.0×Cable-φ | ||||
Temperature range （℃） | Installation | -20~+60 | |||
Transport&Storage | -40~+70 | ||||
Operation | -40~+70 | ||||
