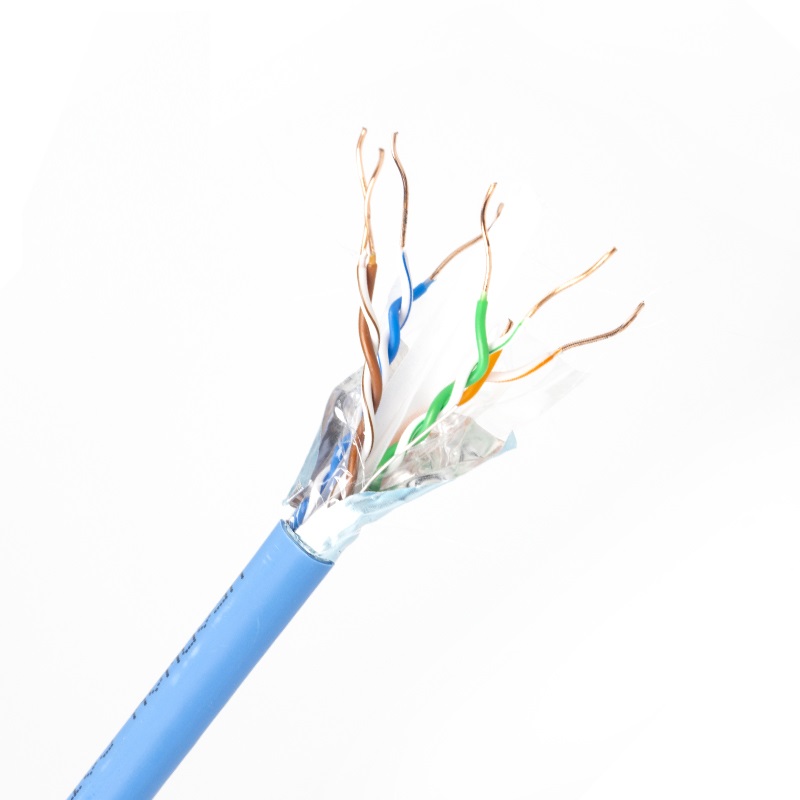

Annealed Solid Bare Copper
HDPE insulation
PVC Jacket
Reference Standard ： TIA/EIA-568-C.2, ISO/IEC11801,
Working Temperature Range：-20℃~70℃
Min. Installation Temperature：0℃
Construction | Jacket | |||
Conductor | Material | PVC | ||
Material | Annealed Bare Copper | Color | Gray or Blue | |
Nominal diameter | 0.58±0.005 mm | Normal Thickness/Thinnest Thickness | 0.52mm/0.48mm | |
Insulation | Jacket Diameter | 7.6mm±0.40mm | ||
Material | PE | Rip Cord | 630D | |
Concentric Ratio | ≥90% | Electrical characteristic(20℃) | ||
Insulation Diameter | 1.1±0.1mm | 1.Conductor DC Resistance | ≤73.2Ω/km | |
Twisted pair | 2.Resistance Unbalance | ≤2％ | ||
Pair No. | Insulation Color Codes | 3. Dielectric Strength Between Wires | DC 1000V 1min | |
1. | White/Blue(Strip) / Blue | 4.Insulation DC Resistance Between wires | ≥5000MΩ·km | |
2. | White/Orange(Strip) / Orange | 5. Capacitance Unbalance (1kHz) | ≤1600pF/km | |
3. | White/Green(Strip) / Green | Safety characteristic | ||
4. | White/Brown(Strip) / Brown | Environment Requirements | standard of RoHS | |
Pair Twist Lay Length | ≤ 25mm | |||
Cabling | ||||
Stranding construction | 1*4 | |||
Filler | PE | |||
Thickness | ≥0.02mm | |||
Electric Side | AL Face Outside | |||
Al Foil /Al Thickness | ≥0.06mm/≥0.03mm | |||
Drain Wire Material | Tinned Copper | |||
Diameter | 0.40mm±0.01mm | |||
