Description

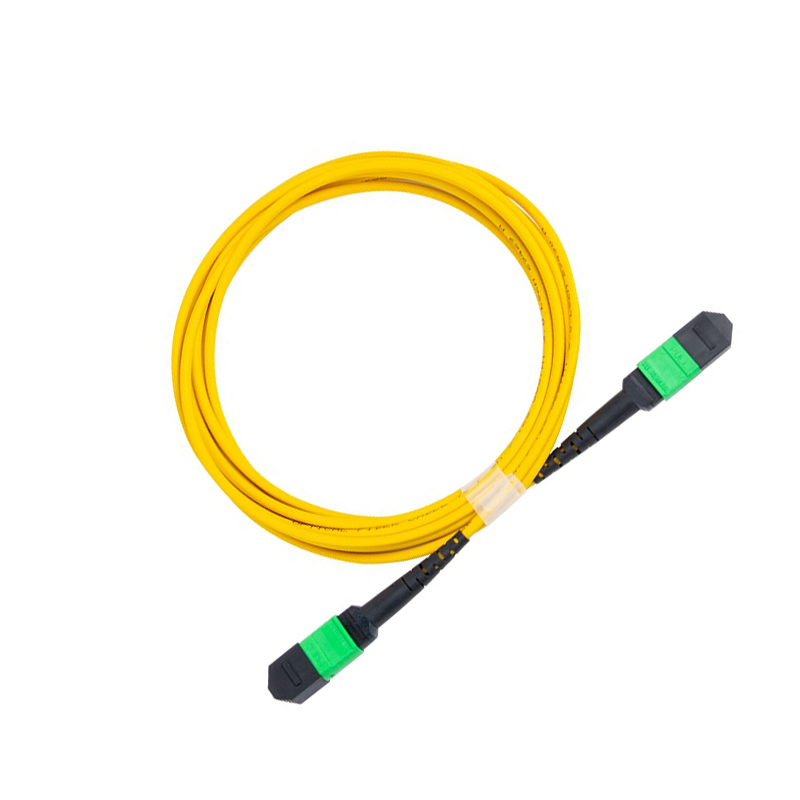

MTP/MPO armored patchcords can protect the biting from mice.
Facilitate rapid deployment of high density armored mini cabe in data centres and other high fibre environments.
Reduce network installation or reconfiguration time and cost.
MTP/MPO armored patchcords are built with highest quality components Standard MTP/MPO as well low loss
Elite versions are offered featuring low insertion loss for demanding high speed networks with critical power budget requirements.
Application
Data center infrastructure
Storage area network
Optical switch and router
Emerging 40Gbps and 100Gbps protocols compatible
Specification
Fiber Type | SM | SM ( Low-Loss) | MM | MM (Low-Loss) |
Insertion Typical（dB) | 0.35 | 0.10 | 0.35 | 0.10 |
Insertion Maximum(dB) | 0.7 | 0.35 | 0.60 | 0.35 |
Return Loss(dB) | MM≥35、 UPC≥50、 APC≥55 | |||
Male/Female | Male:with Pins；Female:without Pins | |||
Repeatability(dB) | ≤0.2 / 500 Times | |||
Operating Temperature(℃） | -40~+85 | |||
