ADSS
Headway

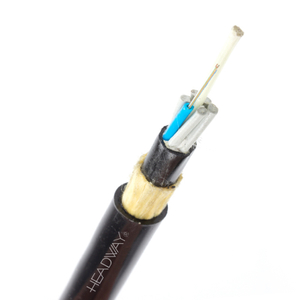

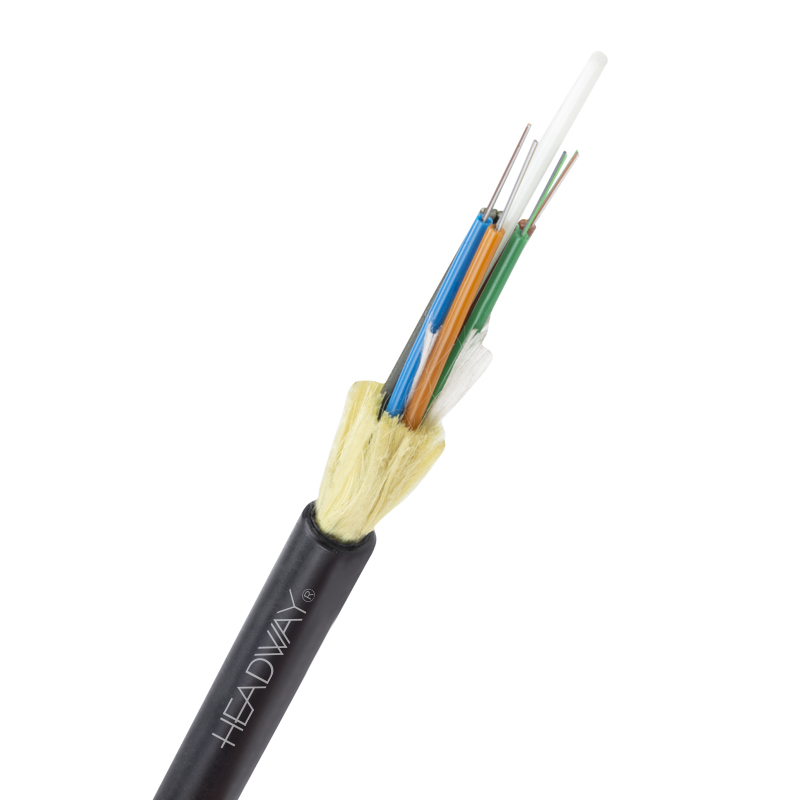

Outdoor Communication Cable(ADSS-100M)
Cable Design
Technical data
No. of cable | 4 | 12 | 24 | 48 | 72 | 96 | 144 | |
Fiber Model | G.652D | |||||||
Design(StrengthMember+Tube&Filler) | 1+5 | 1+5 | 1+5 | 1+5 | 1+6 | 1+8 | 1+12 | |
Central Strength Member | Material | FRP | ||||||
Diameter（±0.05）mm | 1.5 | 1.5 | 1.5 | 1.5 | 2.1 | 2.1 | 2.1 | |
Additional Sheath | Material | LDPE | ||||||
Diameter（±0.05）mm | — | — | — | — | — | 3.4 | 6.4 | |
Loose Tube | Material | PBT | ||||||
Diameter（±0.06）mm | 1.8 | 1.8 | 1.8 | 2.1 | 2.1 | 2.1 | 2.1 | |
Thickness（±0.03）mm | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | |
The Max.Core NO./Tube | 4 | 6 | 6 | 12 | 12 | 12 | 12 | |
Filler Rope | Material | PP | ||||||
Colour | Colour | |||||||
Diameter (±0.05)mm | 1.8 | 1.8 | 1.8 | 2.1 | -- | -- | -- | |
Water Blocking layer（Material） | Water blocking tape | |||||||
Strength Member（Material） | Aramid yarn | |||||||
Outer Sheath | Material | MDPE | ||||||
Colour | Black | |||||||
Thickness（±0.1）mm | 1.7 | |||||||
Cable Diameter（±0.2）mm | 9.4 | 9.4 | 9.4 | 10.0 | 10.6 | 11.9 | 14.9 | |
Cable Weight（±10）kg | 66 | 66 | 66 | 75 | 83 | 105 | 166 | |
Max.allowavble pulling force KN | 3.6 | |||||||
Crush resistance N/10cm | 1000 | |||||||
Min. bending radius | Without Tension | 10.0×Cable-φ | ||||||
Under Maximum Tension | 20.0×Cable-φ | |||||||
Temperature range （℃） | Installation | -20~+60 | ||||||
Transport&Storage | -40~+70 | |||||||
Operation | -40~+70 | |||||||
Outdoor Communication Cable(ADSS-100M)
Cable Design
Technical data
No. of cable | 4 | 12 | 24 | 48 | 72 | 96 | 144 | |
Fiber Model | G.652D | |||||||
Design(StrengthMember+Tube&Filler) | 1+5 | 1+5 | 1+5 | 1+5 | 1+6 | 1+8 | 1+12 | |
Central Strength Member | Material | FRP | ||||||
Diameter（±0.05）mm | 1.5 | 1.5 | 1.5 | 1.5 | 2.1 | 2.1 | 2.1 | |
Additional Sheath | Material | LDPE | ||||||
Diameter（±0.05）mm | — | — | — | — | — | 3.4 | 6.4 | |
Loose Tube | Material | PBT | ||||||
Diameter（±0.06）mm | 1.8 | 1.8 | 1.8 | 2.1 | 2.1 | 2.1 | 2.1 | |
Thickness（±0.03）mm | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | |
The Max.Core NO./Tube | 4 | 6 | 6 | 12 | 12 | 12 | 12 | |
Filler Rope | Material | PP | ||||||
Colour | Colour | |||||||
Diameter (±0.05)mm | 1.8 | 1.8 | 1.8 | 2.1 | -- | -- | -- | |
Water Blocking layer（Material） | Water blocking tape | |||||||
Strength Member（Material） | Aramid yarn | |||||||
Outer Sheath | Material | MDPE | ||||||
Colour | Black | |||||||
Thickness（±0.1）mm | 1.7 | |||||||
Cable Diameter（±0.2）mm | 9.4 | 9.4 | 9.4 | 10.0 | 10.6 | 11.9 | 14.9 | |
Cable Weight（±10）kg | 66 | 66 | 66 | 75 | 83 | 105 | 166 | |
Max.allowavble pulling force KN | 3.6 | |||||||
Crush resistance N/10cm | 1000 | |||||||
Min. bending radius | Without Tension | 10.0×Cable-φ | ||||||
Under Maximum Tension | 20.0×Cable-φ | |||||||
Temperature range （℃） | Installation | -20~+60 | ||||||
Transport&Storage | -40~+70 | |||||||
Operation | -40~+70 | |||||||
