| Connector-A: | |
|---|---|
| Connector-B: | |
| Color: | |
| Lenght: | |
| Quantity: | |
Product Description

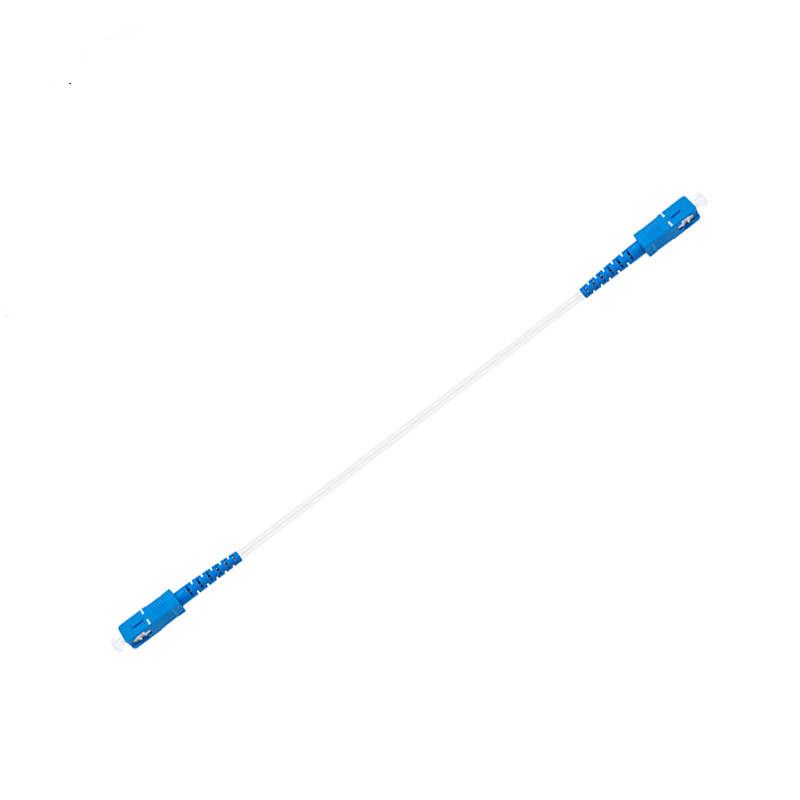

The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.It also widely used for high bit rate data transmission,telecommunications,tesing instruments,active device terminations,LAN/WAN and FTTX
Features
Good durability
Good exchangeability
High temperature stability
Low insertion loss and back reflection loss
Superior Quality Standard PC/UPC/APC Polishing
Standard: Telcordia GR-326-CORE, TIA/EIA and IEC
Applications
Telecom Net
Local Ring Net
Optical Fiber Sensor
Optical Fiber Test Equipment
Optical Fiber Communication System
FTTH,LAN,PON & Optical CATV.
Pigtail Connector | PC(SM) | UPC(SM) | APC(SM) | |
Return Loss (dB) | ≥45 | ≥50 | ≥60 | |
Insection Loss (dB) | ≤0.2 (max≤0.3) | |||
Repeatability (dB) | ≤0.1 | |||
Durability (1/Matings) | ≥500 | |||
Operation Temperature (°C) | -25~+70 | |||
Tensile Strength(N) | ≥100 | |||
Fiber | ITU G657A1、ITU G657A2、ECT | |||
Diameter | 2X3mm | |||
Cable Material | LSZH | |||
Cores | Simplex、duplex | |||
