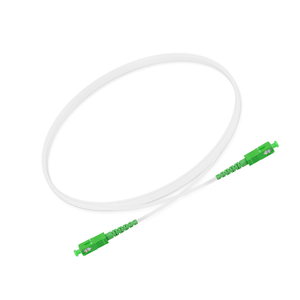

Drop Cable Out Door Patch Cord

Connector-A:
Connector-B:
Lenght:
Availability:
Quantity:

Product Description

   The fiber optic patch cord mainly used on patch panel or for the connection between outlets and terminal equipment.It also widely used for high bit rate data transmission,telecommunications,tesing instruments,active device terminations,LAN/WAN and FTTX.


Features

  Good durability

  Good exchangeability

  High temperature stability

  Low insertion loss and back reflection loss

  Superior Quality Standard PC/UPC/APC Polishing

  Standard: Telcordia GR-326-CORE, TIA/EIA and IEC


Applications

  Telecom Net

  Local Ring Net

  Optical Fiber Sensor

  Optical Fiber Test Equipment

  Optical Fiber Communication System

  FTTH,LAN,PON & Optical CATV.


Pigtail Connector

PC(SM)

UPC(SM)

APC(SM)


Return Loss (dB)

≥45

≥50

≥60


Insection Loss (dB)

≤0.2 (max≤0.3)

Repeatability (dB)

≤0.1

Durability (1/Matings)

≥500

Operation Temperature (°C)

-25~+70

Tensile Strength(N)

≥100

Fiber

ITU G657A1、ITU G657A2、ECT

Diameter

2X5mm

Cable Material

LSZH

Cores

Simplex、duplex
